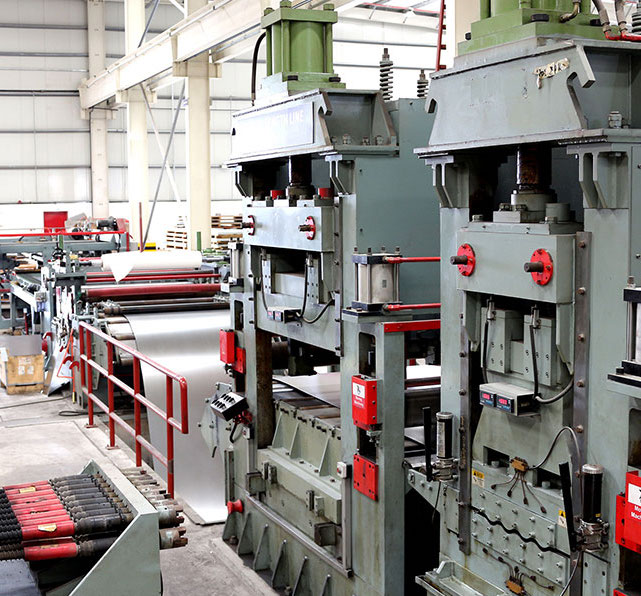

TEE DEE stockist of Structural Steel has also a factory with the latest state of the art automatically operated Slitting, Cut-to-Length Line and Polishing unit. The coil service center processes steel coils into skelp (baby) coils and sheets / plates by slitting or shearing them to the size as required by the customer.In our factory we process coils which are within the range ofWeight:– up to 25 metric ton; Width:– up to 1500 mm Thickness:– 0.30 mm to 4.00 mm.
Having abundant storage & handling facilities for Hot Dipped galvanized coils [GI], Pre-painted galvanized coils [PPGI], Aluminum coils [AL], Cold Rolled coils Annealed [CRCA] Hot Rolled coils [HR] andStainless Steel Coils with most modern cutting & slitting facilities Makes TEE DEE a fast and efficient CoilService Centre
Slitting Machine
| MATERIAL | MOTHER COIL WIDTH (mm) | THICKNESS RANGE (mm) | SLIT WIDTH RANGE (mm) | NO. OF SLITS (Maximum) |
|---|---|---|---|---|
| CRCA | 600-1300 | 0.30-4.00 | 20mm – 1250 | 30nos. |
| Stainless Steel | 600-1300 | 0.30-2.00 | 20mm – 1250 | 30nos. |
| GI Coils | 600-1300 | 0.30-4.00 | 20mm – 1250 | 30nos. |
| PPGI | 600-1300 | 0.30-2.50 | 20mm – 1250 | 30nos. |
| Aluminium | 600-1300 | 0.50-3.00 | 50mm – 1250 | 10nos. |
| Hot Rolled | 600-1300 | 1.50-3.80 | 50mm – 1250 | 08nos. |
Cut To Length Machine
| MATERIAL | MOTHER COIL WIDTH (mm) | THICKNESS RANGE (mm) | LENGTH RANGE (mm) |
|---|---|---|---|
| CRCA | 600-1550 | 0.40-4.00 | 600-4000 |
| Stainless Steel | 600-1550 | 0.40-2.50 | 600-4000 |
| GI Coils | 600-1550 | 0.40-4.00 | 600-4000 |
| PPGI | 600-1550 | 0.40-2.50 | 600-4000 |
| Aluminium | 600-1550 | 0.40-3.00 | 600-4000 |
| Hot Rolled | 600-1550 | 1.50-3.80 | 600-4000 |
